Replacement of Fire Doors

Client: Advanced Computer Systems
Value: £7.9k

This client occupies a three storey building, each floor has landings and fire doors into those landings on each floor from each flight of stairs. As a result of a fire risk assessment, it was noted that there were too many gaps around the doors to meet current regulations, and the gaps needed to be reduced.

Fire Door Challenge

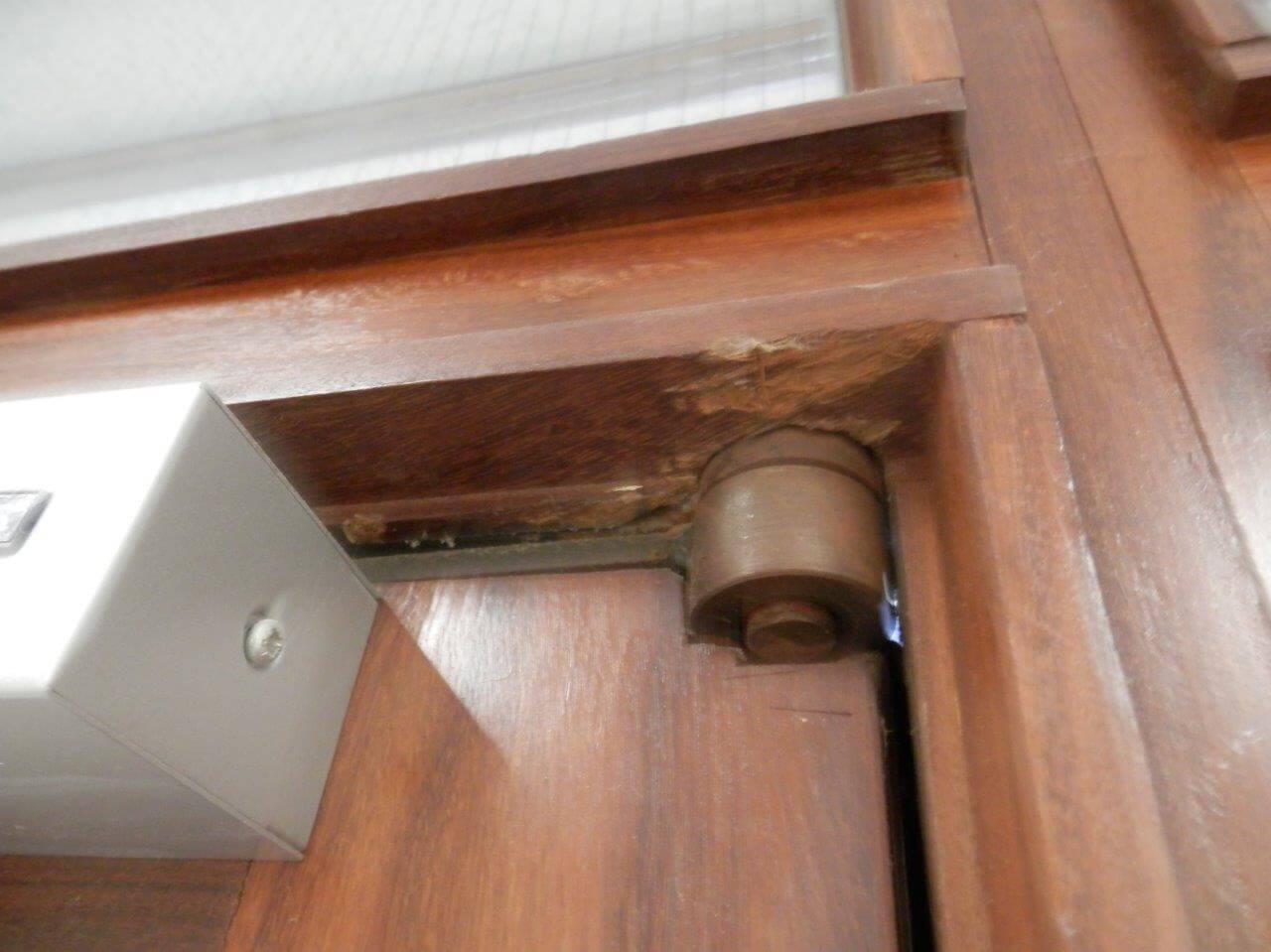

At first glance, replacing the doors would appear to be a simple job. However, on investigation we found that the glazed screens were produced many years ago, and each doorset was measured to a different size, so it was highly likely that each of the screens on each floor was made on site, individually. Each of the door sets had different problems with them. The current doors relied on a floor spring that was built into the floor which had since failed, and extra door closers were added with not the correct power to swing the doors properly. Each of the door sets also had different gaps, so it would not be possible to completely manufacture the doors with big windows in them, as when fitted each door pair would be needed to be ‘chopped in’ which would make the windows on the door not line up with the windows either side on the glazed screens. We had to take into account the fact that each screen was different.

The solution was not to try and match vision panels in the doors with the glass in the side screen, but to use a completely different vision panel design.

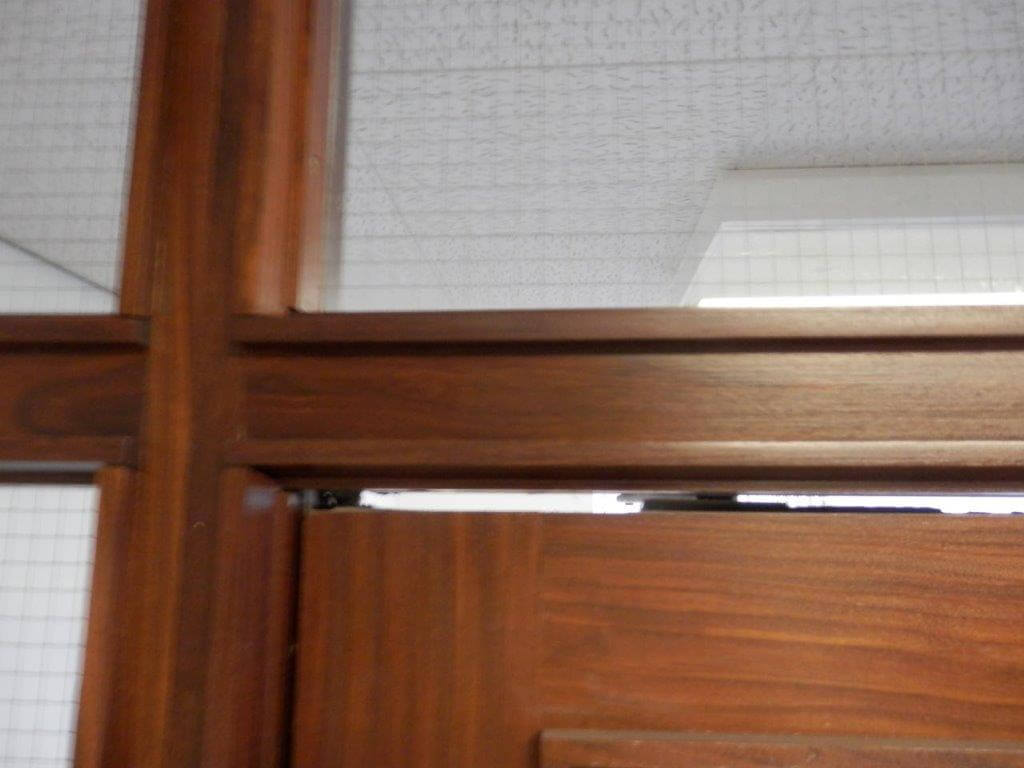

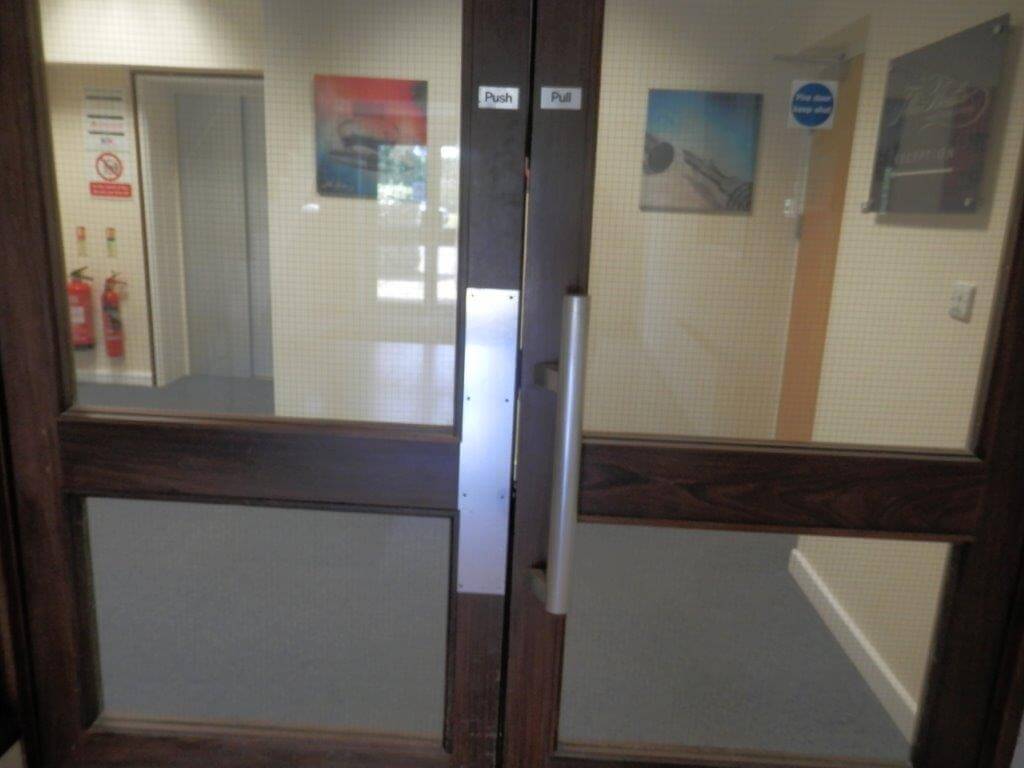

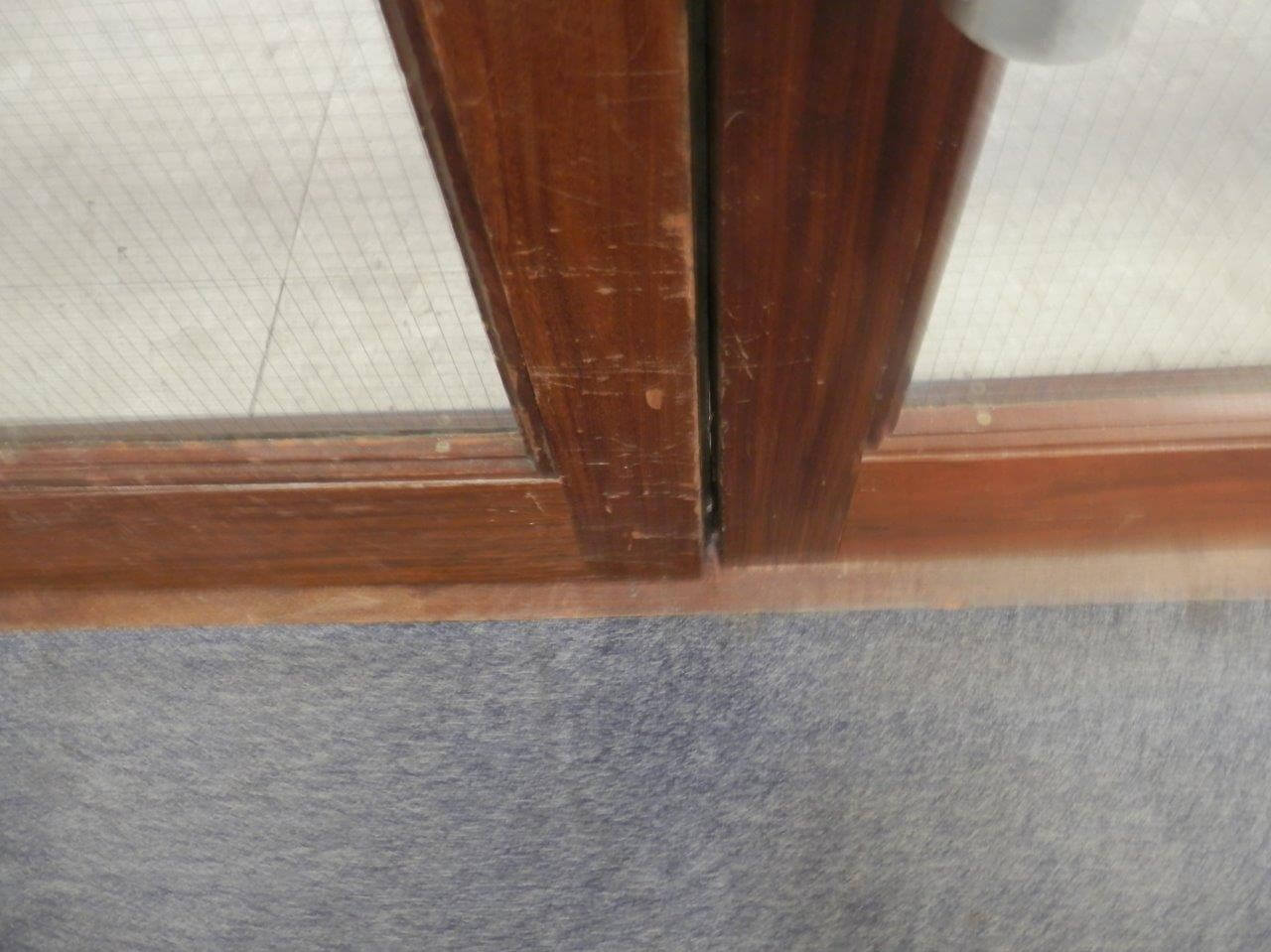

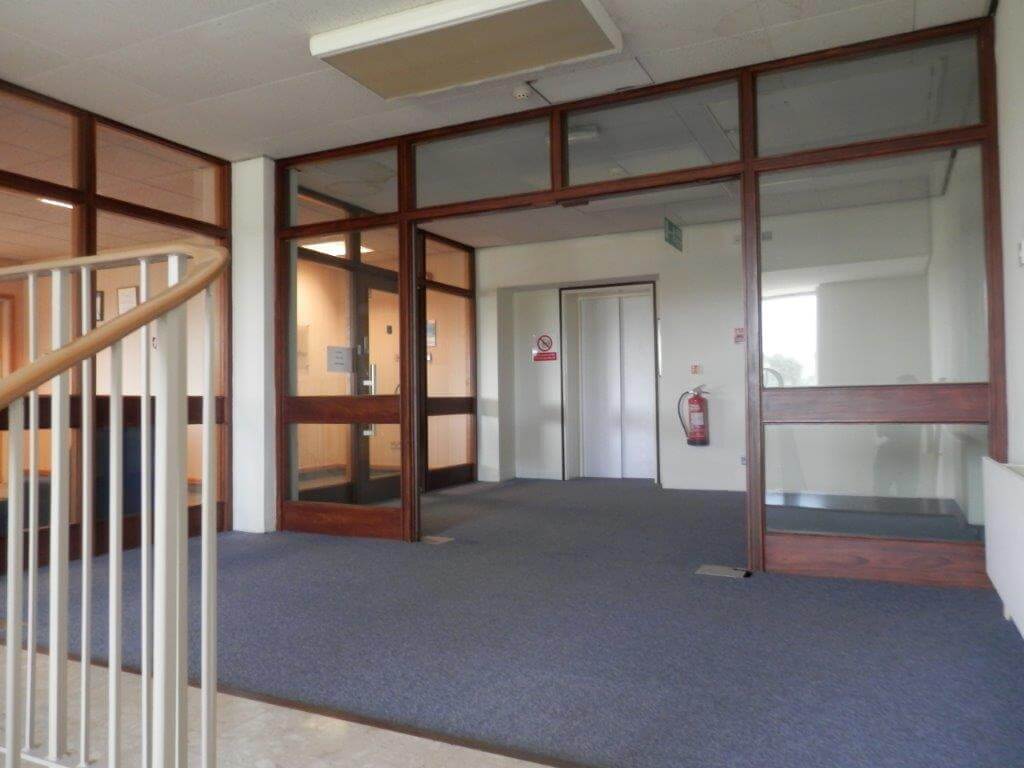

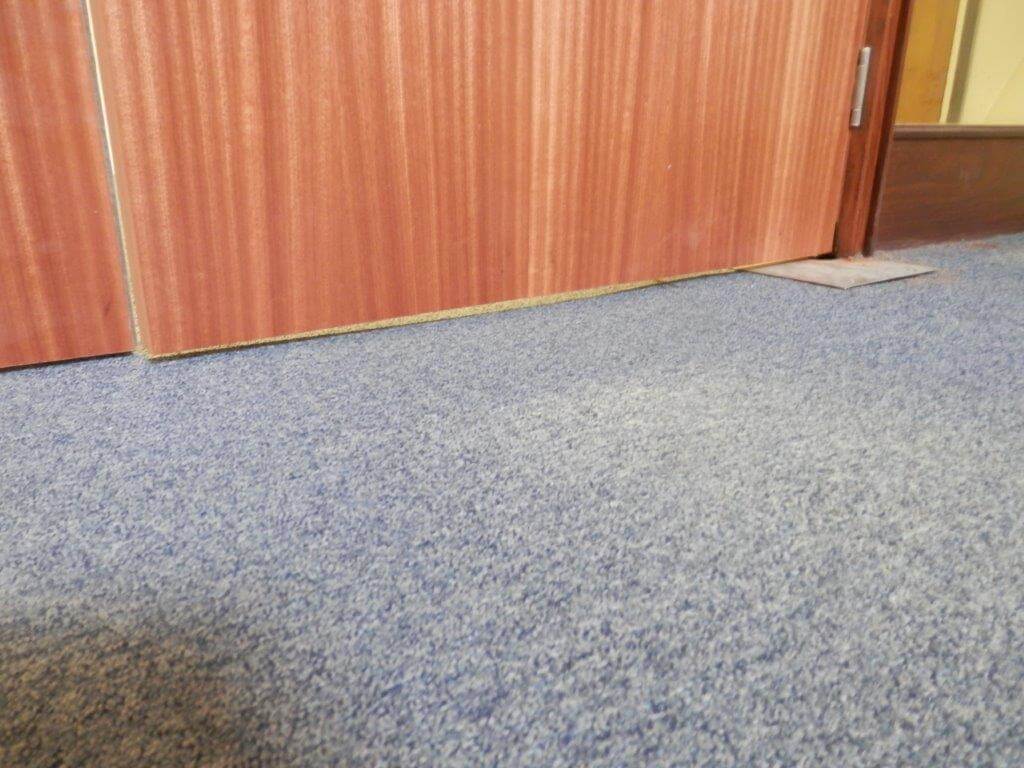

Existing Fire Doors

As you can see from the above photographs the existing doors had vision panels at approximately the same height as the glass panels on either side. Over the years the doors and frames had dropped, and as the doors had to be planned to fit, it would not be possible to line them up again.

Other Challenges

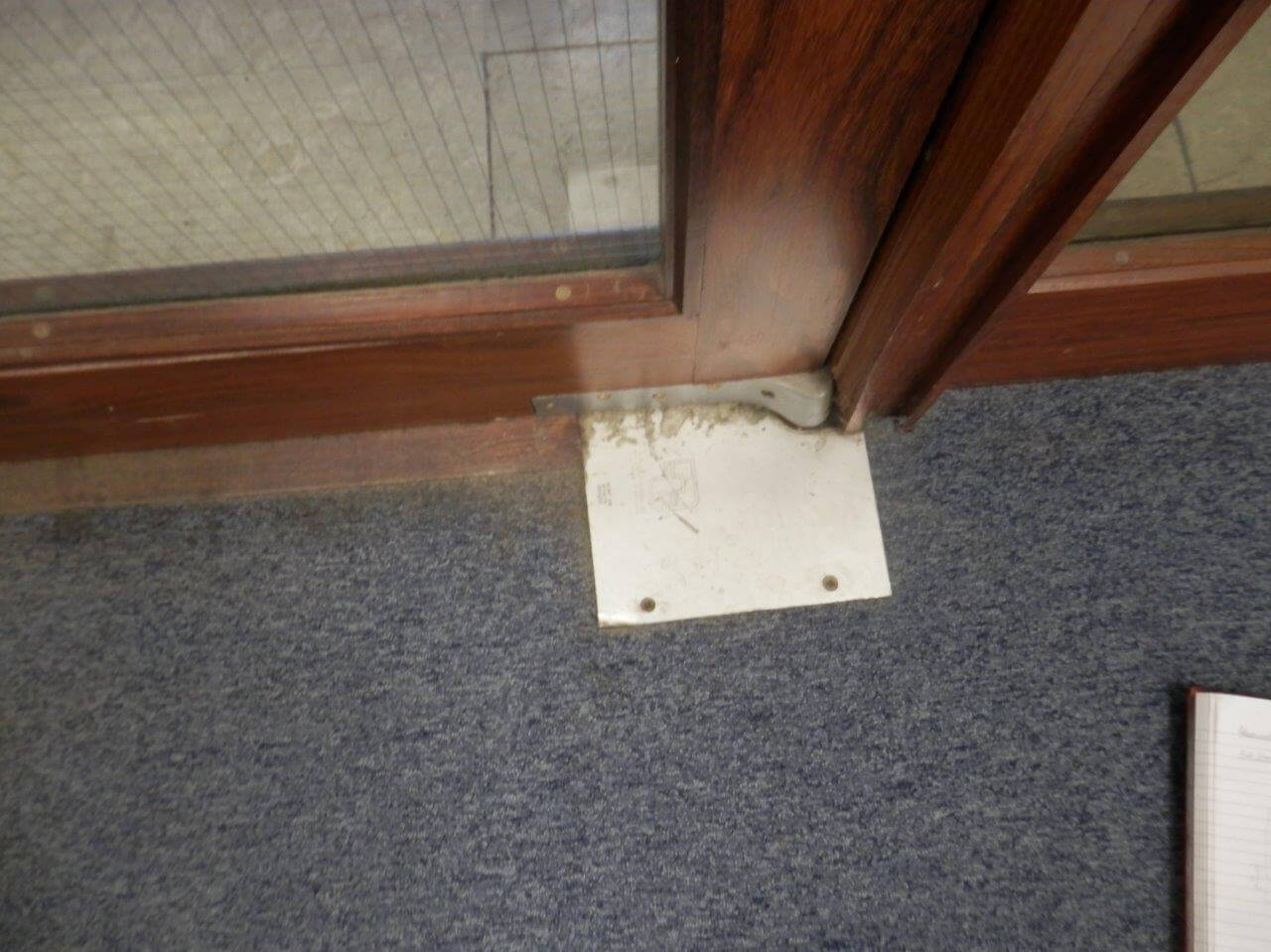

The old floor springs to close the doors had long since expired and the problem with them is that they could not just be replaced as the parts were no longer available. The whole mechanism had to be taken out and we replaced the hole with stainless steel plates.

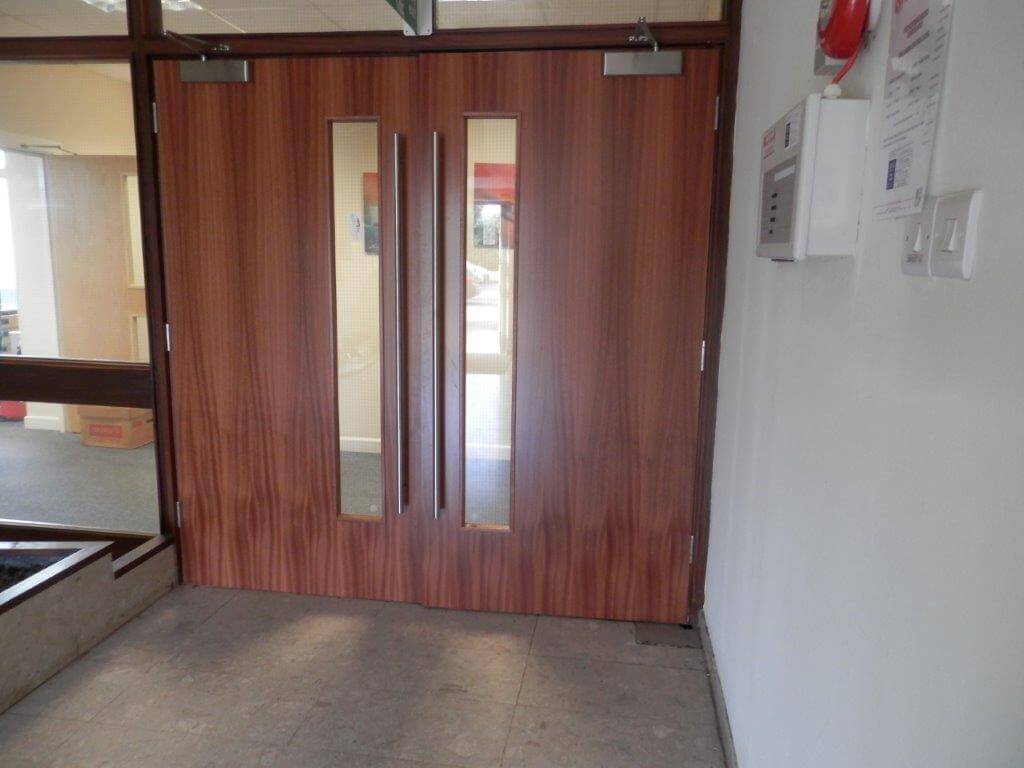

Finished Fire Doors

All three floors on each of the landings had to have new doors which now comply with the smalls gaps that are required with fire doors. If you would like to discuss any issues with fire doors, we are happy to help. Please call our office on 01380 73 88 44, or email us using our contact form on this website.

Categories
All Project Categories Dilapidation work Featured Office Refurbishments Partitioning Projects Suspended Ceilings Uncategorized

Dilapidation Work in Reading

Client: The House of God Evangelical Church
Value: £100k

Dilapidation Work

The House of God Evangelical Church needed us to carry out some Dilapidation work in Reading.

We carry out dilapidation work occasionally and is very similar to the general term of office refurbishments. We carry out this work when a client leaves their current building and it has to be put back to an original state. In this case, the state of the building over three floors was pretty bad, but in essence it just needed all of the things that we currently do. Stripping out, new suspended ceilings, dry lining, painting and decorating, flooring work, demountable partitioning, fitting a small kitchen and minor structural work.

As we were doing the work the client asked us to build some new offices on one of the floors and we constructed the walls from demountable partitioning. Some finished photographs are shown below.

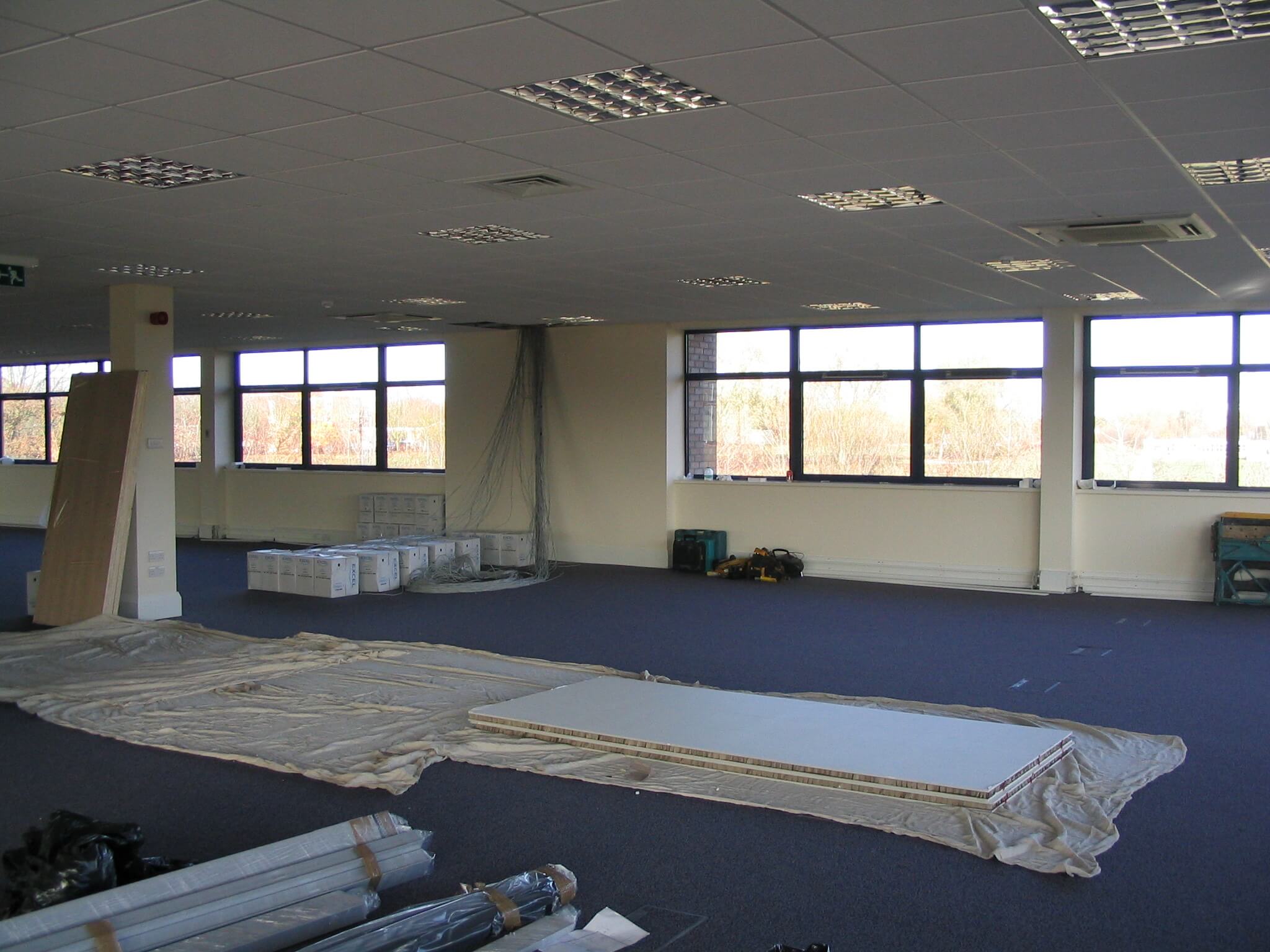

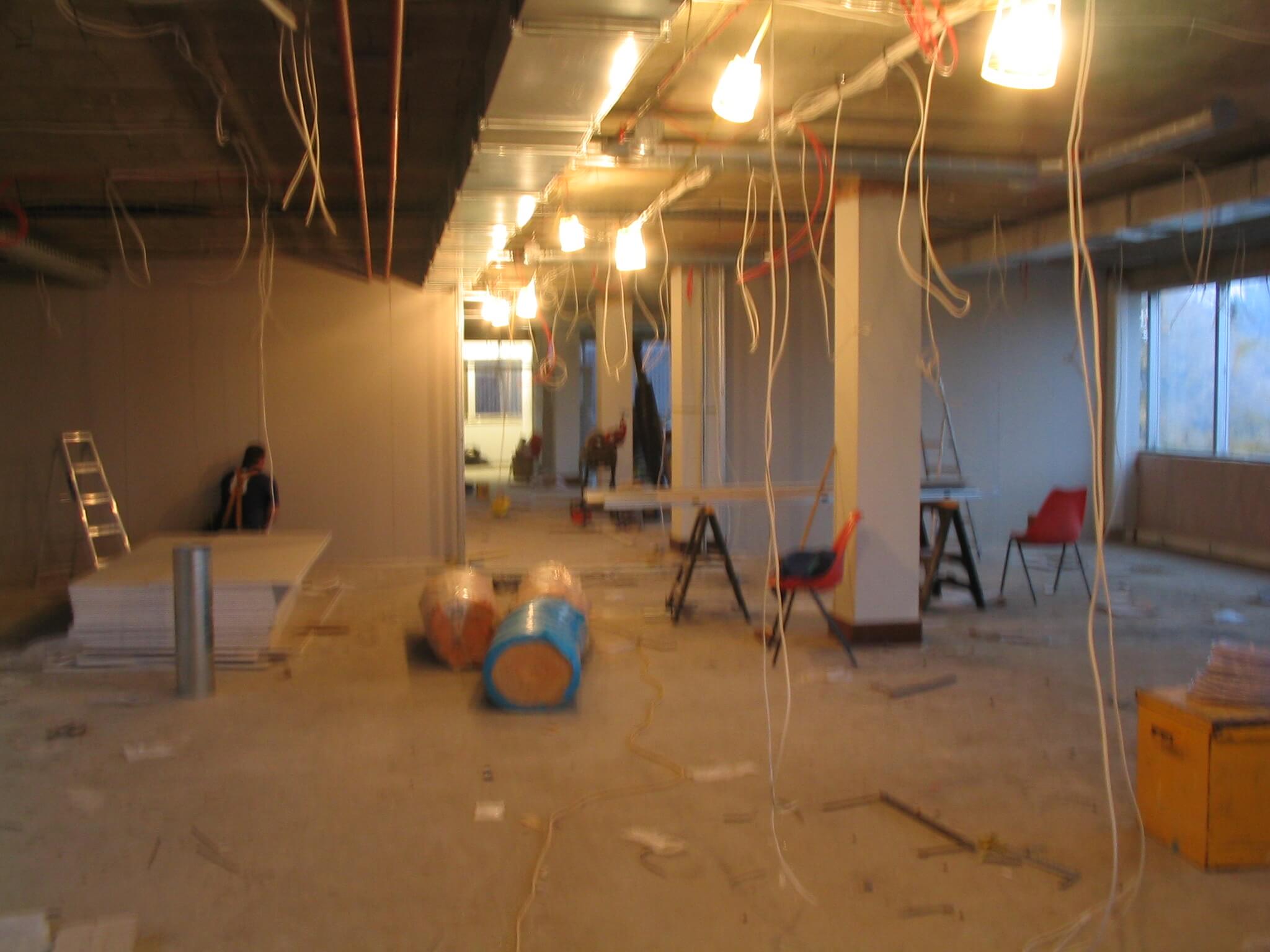

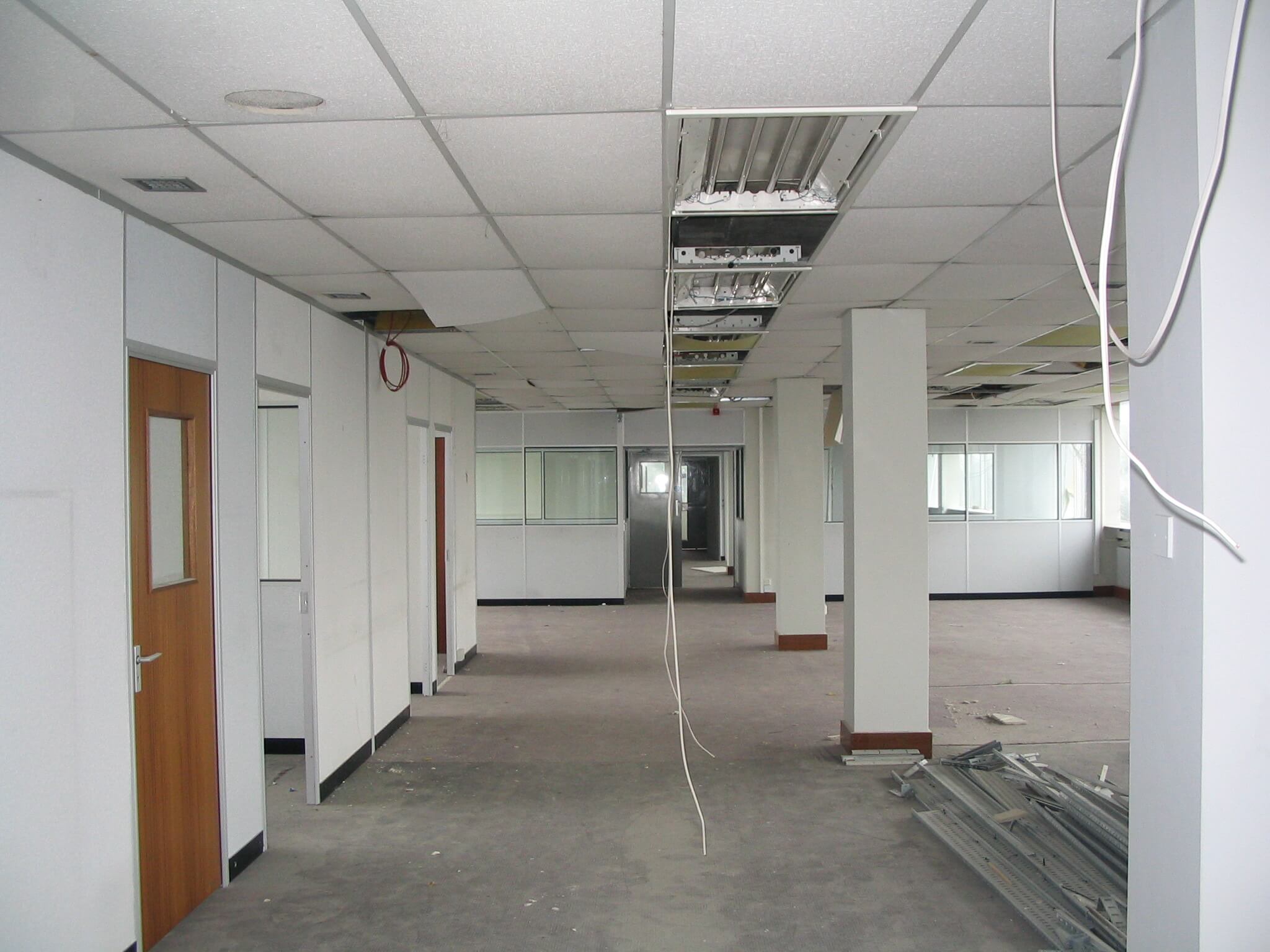

Existing state of the building

As you can see from the photographs below the building needed quite a bit of work doing to it, nothing unusual to what we normally do, just quite a bit of it.

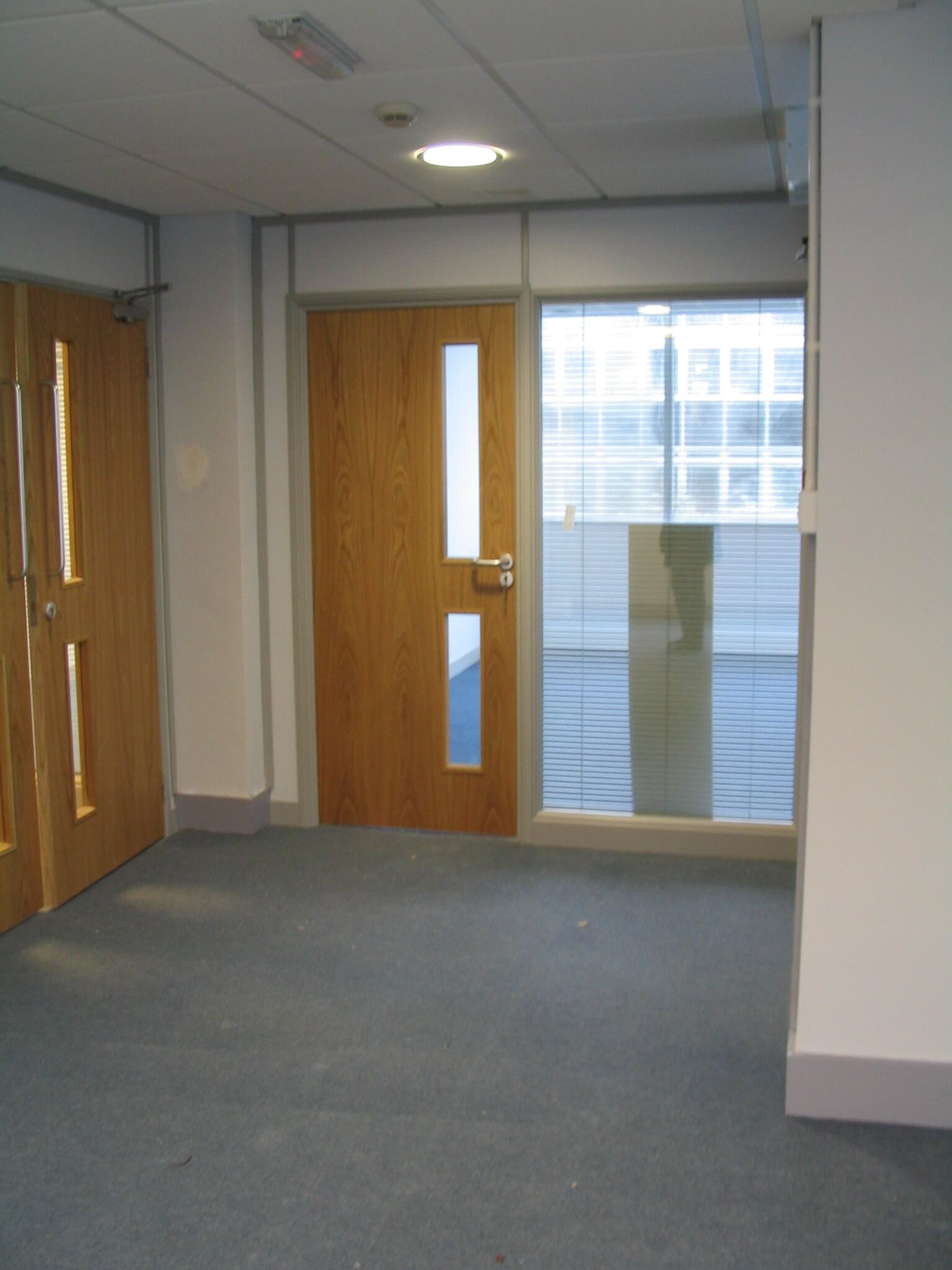

Finished photographs.

Unfortunately we did not get to many finished photographs for this project, please find some below.

Why Demountable Partitioning?

  1. Demountable partitioning is tax efficient in that they are seen as movable items and so can be treated differently in writing down allowances in the accounts.
  2. We can also lease Demountable Partitioning as they are movable, this spreads the costs of having the work done as Demountable Partitions always cost more than customers think.
  3. Leasing of demountable partitioning is very tax efficient and Cre8tive can provide illustrations, please contact us for further information.
  4. Most landlords insist on demountable partitions being used for offices as it is much easier to take them out should the tenant renting the space leave for any reason. The benefit is that is saves making a huge amount of mess and destruction that would be need with a conventional stud and plasterboard constructed wall.

Questions on Demountable Partitioning?

If you are not sure about anything we love to talk about projects and sort out problems and issues with space, please give us a call on 01380 738844
