High Wall Jumbo Stud Office Partitioning in Bristol

High Wall Jumbo Stud Office Partitioning in Bristol

Client: Bristol Language Centre
Value: £16.5k

Jumbo Stud Partitioning

The client was expanding to a new floor in the same building and was in need of jumbo stud partitioning as well as standard stud partitioning for seven new classrooms. The client decided against a suspended ceiling, instead having the rooms reach up to the apex of the roof at 4.5m. We felt that this would increase the noise levels in the room but the benefit would be a much more open environment.

We had to work out the materials in order to cost the work, so the first job is always to measure and draw it.

Jumbo stud wall for Bristol Language Center Bristol
A drawing is needed to work out how to do things.

The walls were constructed from stud and board with jumbo stud to achieve a strong structure to that height. The walls were taped and jointed and painted in an off white colour so that each room was kept light and airy. The front doors to the training rooms were constructed from some conventional demountable partitioning system materials, as well as some demountable partitioning skirting sections to run around the walls.

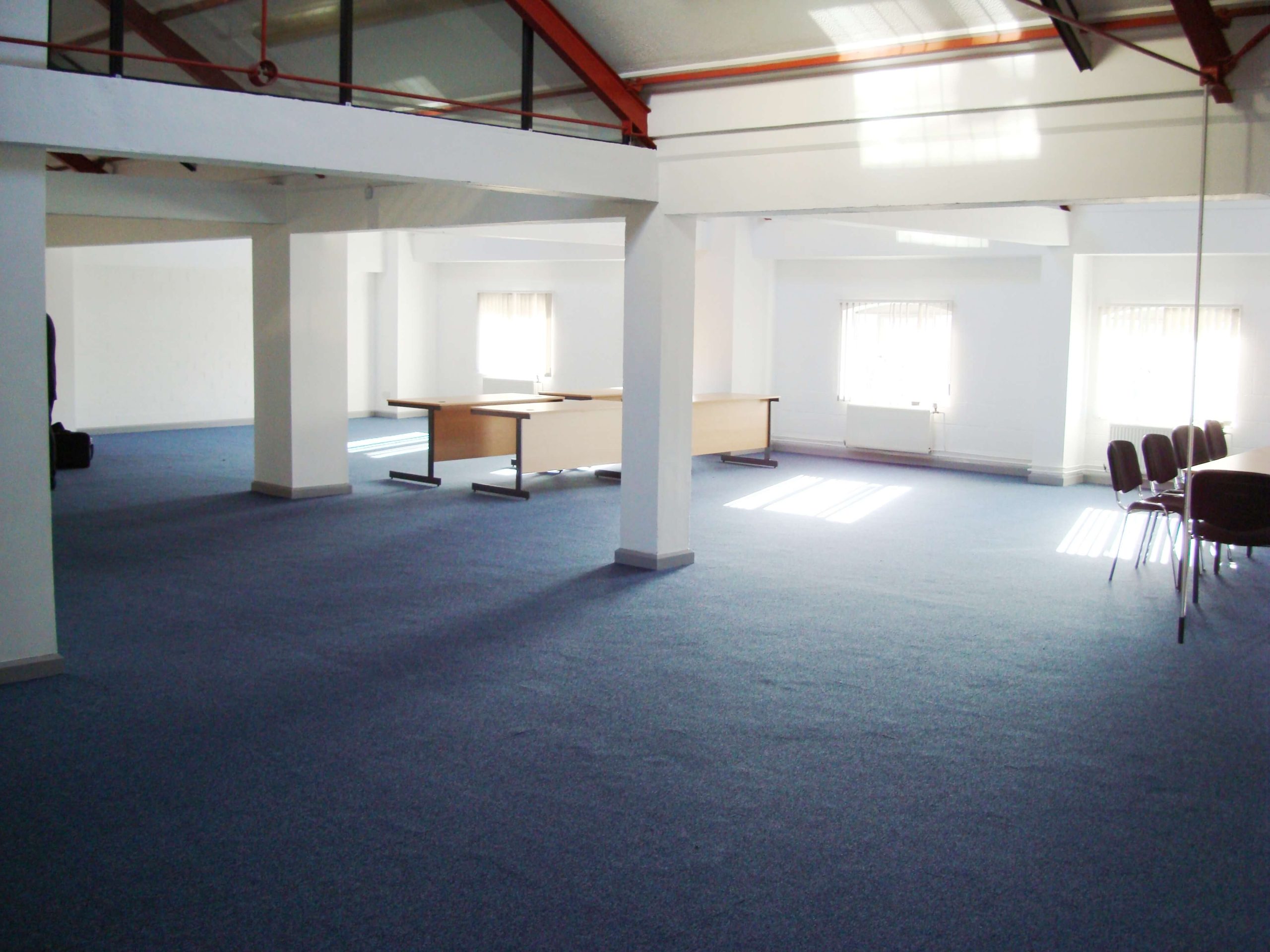

Existing photographs

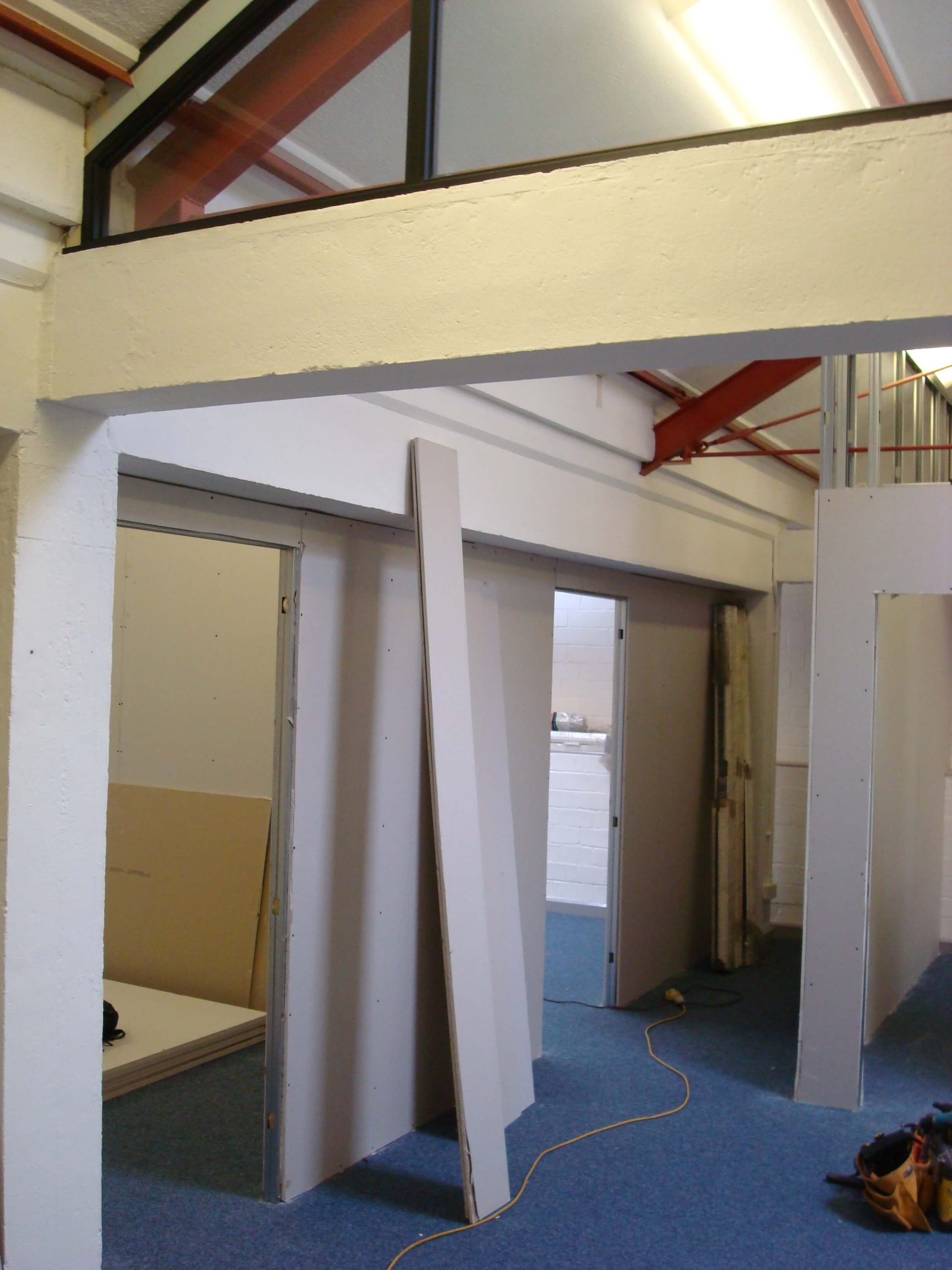

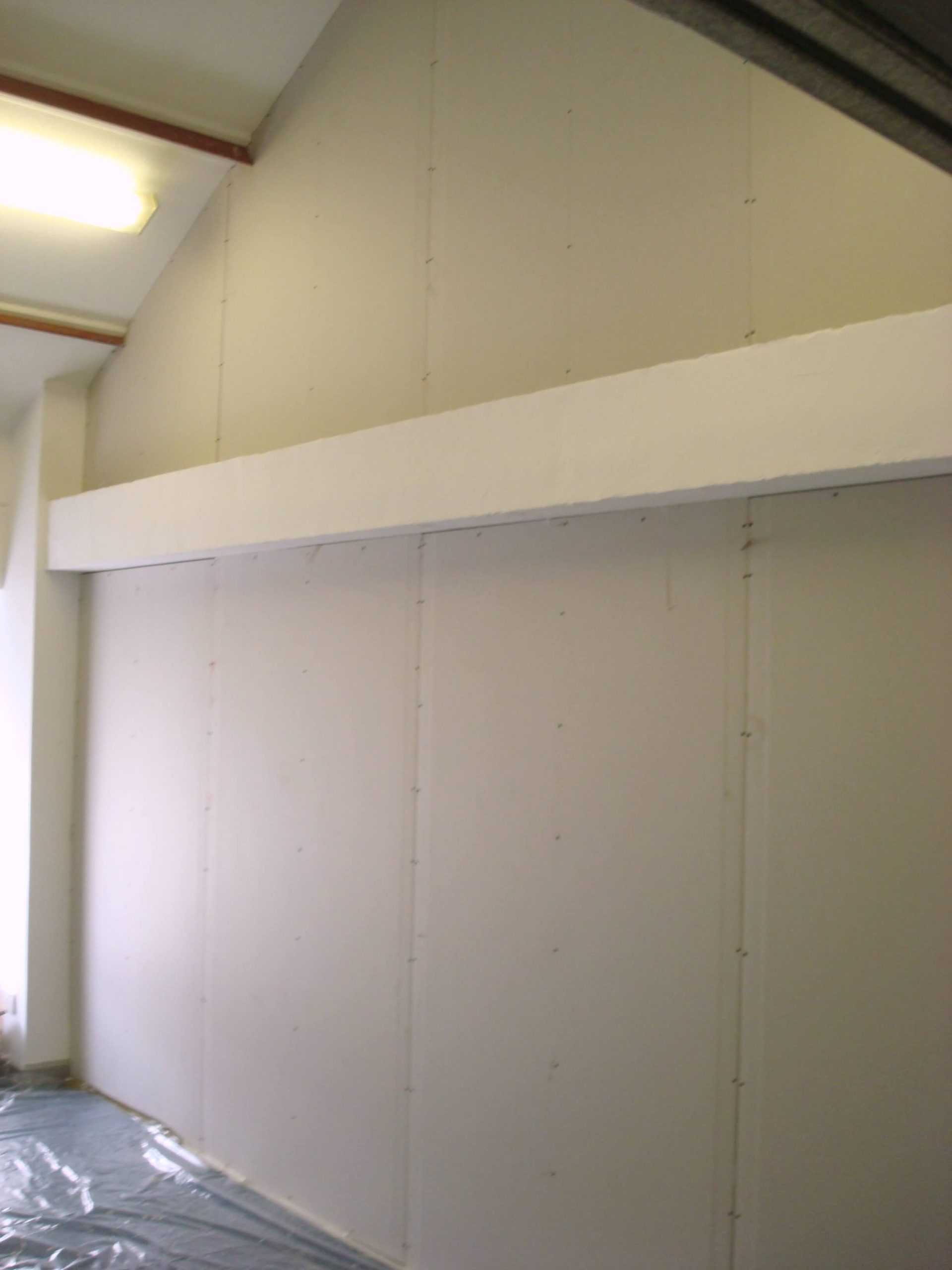

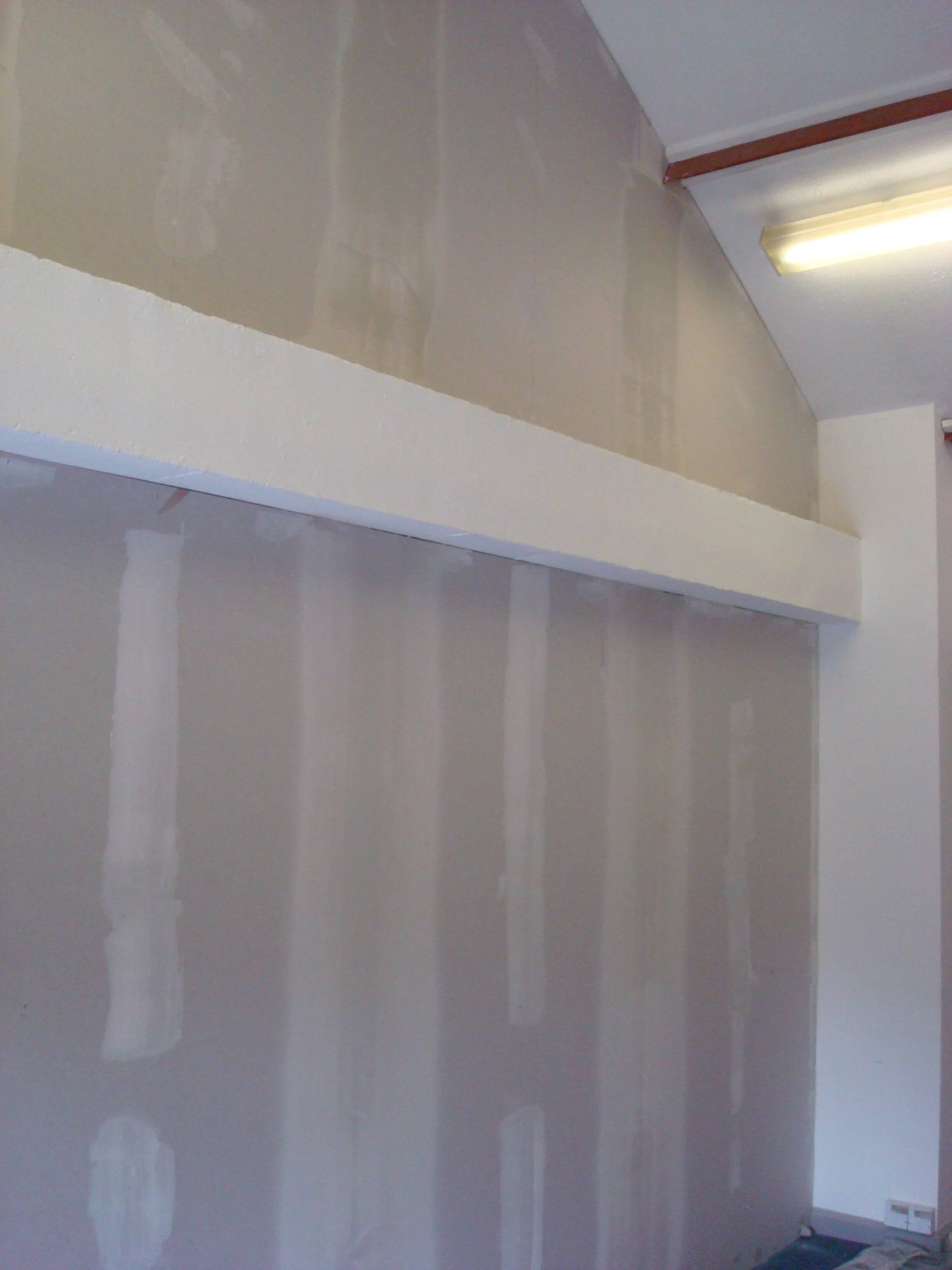

Construction photographs

As explained in the previous paragraphs this project used jumbo stud partitioning due to the height requirements of the wall, most walls in offices use demountable partition for speed of construction as well as other uses.

Why Demountable Partitioning?

  1. Demountable partitioning is tax efficient in that they are seen as movable items and so can be treated differently in writing down allowances in the accounts.
  2. We can also lease Demountable Partitioning as they are movable, this spreads the costs of having the work done as Demountable Partitions always cost more than customers think.
  3. Leasing of demountable partitioning is very tax efficient and Cre8tive can provide illustrations, please contact us for further information.
  4. Most landlords insist on demountable partitions being used for offices as it is much easier to take them out should the tenant renting the space leave for any reason. The benefit is that is saves making a huge amount of mess and destruction that would be need with a conventional stud and plasterboard constructed wall.

Questions on any  kind of Partitioning?

If you are not sure about anything we love to talk about projects and sort out problems and issues with space, please give us a call on 01380 738844

Categories
All Project Categories Partitioning

New Corner Office – Demountable Partitioning

New Corner Office – Demountable Partitioning

Client: Mango Solutions
Value: £2.4k

Demountable Partitioning

Further on from the previous two office that we built for Mango solutions, we created a new corner office for the MD, a storage cupboard and meeting room. The new partitioning was to be joined to some existing demountable partitioning that we had previously built for the customer.

We needed to take down the corner of the existing meeting room to build the new offices. Each of the two new rooms have a double glazed window with integral blinds. The beauty of demountable partitioning is just that, the frames are demountable and you can re-use the uprights frames and plasterboard.

Powder coated grey aluminium metalwork was used to match the existing, and insulation inside the cavity wall was used to help reduce the sound travelling between the rooms. The demountable partition is available in different widths, 50mm, 75mm and 100mm and choice depends very much on what performance you want to achieve with the system. The narrow systems we can make look good, but do not perform as well as the wider systems which we installed for Mango. If you are unsure about anything or need more information please do not hesitate to give us a call.

Why Demountable Partitioning?

  1. Demountable partitioning is tax efficient, in that they are seen as movable items and so can be treated differently in writing down allowances in the accounts.
  2. We can also lease Demountable Partitioning systems as they are movable, this spreads the costs of having the work done as demountable partitioning materials always cost more than customers think.
  3. Leasing of demountable partitions is very tax efficient and Cre8tive can provide illustrations, please contact us for further information.
  4. Most landlords insist on demountable partitioning being used for offices as it is much easier to take them out should the tenant renting the space leave for any reason. The benefit is that is saves making a huge amount of mess and destruction that would be need with a conventional stud and plasterboard constructed wall.
Categories
All Project Categories Partitioning

Building an Office Partition on a Reception Desk

Building an Office Partition on a Reception Desk

Client: Malmesbury Primary School
Value: £5.6k

This was a difficult problem to solve and the only way we could think of doing this was to actually construct a glass partition onto the reception desk. The school had a specific issue with noise coming into the office area as the reception desk is in a main traffic area. Draught’s were also a problem as well as some of the electrical control equipment including the CCTV system was spread over a large area. A new cabinet was supplied under the desk with all the cables re-routed to suit. It was also important to keep the costs to minimum so various options were considered before work started.

In addition to the above, the school wanted some degree of sound insulation. Their initial thought was that the desk would have to be rebuilt with some form of new partition built and all of the computing equipment behind the desk would have to be moved. The CCTV and security systems would also have to be disconnected so a real nuisance. I did think that the desk that was there was pretty good and we could keep it in place, why get rid of it. The idea then was to build something on top of it. The complicated section was on the raised section, a normal partition system would have very chunky frames, so we chose a silicon jointed glass system that would be ready neat and tidy. The joins of the glass could then be angled and ground, then seal with a silicon seal without any vertical aluminum uprights that you would normally use on a conventional partition system.

A further requirement was that they wanted a sliding hatch arrangement so they could open and shut glass doors as needed and we could build this in a partition.

Construction photos

Timing was important as with a busy school and the reception desk being situated in the main thoroughfare, we had to build the partitions out of school hours for safety. The first section to build was the more conventional sliding frame hatch using a conventional partition system but using special ‘Chas mood’ sliding door gear within the partition frames. Once the sliding hatch was built, the glazed system was constructed across the desk. Once all of the frames were built the glaziers arrived to fit the glass.

Completed photos

We did use two different proprietary demountable partitioning systems to provide the finish result. There are several good reasons to use this type of system, the main one is that it can be taken down and removed quite easily. The words demountable partitioning are used quite often in our fit out and refurbishment projects.

Summary on Demountable Partitioning

  1. Using Demountable Partitioning is very tax efficient as they are seen as movable items and so can be treated differently in writing down allowances in the accounts. We have a better description on our News / Blog page on this site.
  2. We can also lease Demountable Partitioning as they are movable, this spreads the costs of having the work done as Demountable Partitions always cost more than customers think.
  3. Leasing of demountable partitioning is very tax efficient and Cre8tive can provide illustrations, please contact us for further information.
  4. Most landlords insist on Demountable Partitions being used for offices as it is much easier to take them out should the tenant renting the space leave for any reason. The benefit is that is saves making a huge amount of mess and destruction that would be need with a conventional stud and plasterboard constructed wall.

Questions on extending offices?

If you are not sure about anything as well as taking about all kinds of partitioning including Demountable we love to talk about projects and sort out problems and issues with space, please give us a call on 01380 738844
