Dilapidation Work in Swindon

Dilpidation work in Swindon for REPL
Finished mezzanine

Client: REPL
Value: £25k

We can carry out Dilapidation work for customers when the customer is required to carry out work by a landlord if they are moving premises, please see our post for more description about what it means by clicking this link.

We carried out quite a major change visually to a worn out factory that looked tired and needed sprucing up. The main elements were a new factory floor, decoration, refurbishment of the offices, and to tidy up the existing mezzanine floor. The existing fire protection on the steel work was not adequate and not fitted correctly, so rather than just paint it, we decided to completely strip it off and install a new fire rated suspended ceiling and a new column encasement system. A quick lick of paint would not have satisfied the fire protection requirements so we decide to do this properly and install all of the correct materials.

Existing Warehouse

The customer has been in the existing building for many years and the unit the occupy is part of the original railway buildings in Swindon, so is probably around 100 years old. As you can see from the photos the the building was quite dilapidated, and this is often referred to as dilapidation work.

Old mezzanine floor

Electrics need sorting!

Wider view

Lots of wires need sorting

Some wires not connected!

Poor fire protection

Poor walls

Toilet to be reduced in size

Toilet block to sort

Kitchen to come out

What was most alarming was the existing fire protection had been carried out by people who clearly did not know what they were doing and there were gaps everywhere, there was no way that the mezzanine floor had adequate protection, so even though the customer just wanted a very basic patch and mend, we took the decision to completely replace everything and do the whole job properly.

Although the photographs do not show it, there was quite a bit of work to completely redecorate the offices at the front of the unit. This included stripping out the kitchen, toilets, stairs, repainting the doors, walls, ceilings and skirting boards.

Construction work

The other constraint that we had is the whole job had to be completed in 3 weeks as a new machine was due to arrive in the unit. The reason why the toilet block had to be halved, was that the new machine was 26 meters long and so it would not quite fit.

Toilet door moved back

Poor state of mezzanine

Steel work being exposed

Exteriors walls bad

Plasterboard stripped out

More stripped

Bottom office demolished

New fire line board bulkhead

Starting wall treatment

Toilet halved

Walls nearly done

Walls nearly done

Our van

Completed Photographs.

We were very pleased with the final results as there was such a difference between what was, and what we achieved in the end. The client was also very pleased with the work as we completed it on time and within budget.

New tea point downstairs

New floor

Office decorated

New ceiling

Toilets redecorated

Our van

Internal doors painted

Finished floor

Fire exit door

New equipment just coming in

View from other direction

Finishing things properly

On top of mezzanine

New fire rated ceiling

Dilapidation Work

As you can see from the photographs, the work is general office refurbishment, and covers all of the things that we would carry out for office interiors. If you have any requirements for dilapidation work that is relevant to offices or warehouses then we would be very pleased to hear from you, as we find this type of work very rewarding, and that is not from a monetary view but seeing the difference between old and new.

Please call 01380 73 88 44, or use the contact us form on our website.

Categories
All Project Categories Mezzanine Floors Mezzanine Floors Office Refurbishments Partitioning Suspended Ceilings

Offices on a Mezzanine Floor

Office Refurbishment for HJ Knees of Trowbridge
Outside of building

Client: H J Knees of Trowbridge
Value: £45k

We are asked to look at making some office alterations to a new office for HJKnees in Whitehorse Business Park. The customer wanted to fit some new offices on a Mezzanine Floor. At first glance we could see straight away that the work would need extra work to make the project comply with Building Regulations as none of the existing mezzanine floor had any fire protection on it at all.

Mezzanine Floors and Building Regulations.

Our first consideration when considering an office project is Building Regulations, does the existing structure comply?, and whatever we do as far as changing things also has to comply. In each case we consider the Regulations and obtain approval before the work starts, during the work we usually have an inspection carried out before the walls all get closed in, and then a post project inspection.

We can then give the client a proper certificate from a Building Regulations Inspector that certifies the design and our work to confirm that all legal requirements have been met.

Please see our articles on Mezzanine floors and what you need to do with Building Regulations on the News section of this website. Unfortunately the customer has never been aware that their existing floor does not comply, and we do come across this quite a lot, so we are always on the back foot before we even start talking about what they want as the whatever work is done, adequate fire protection, escape routes and distances need to be considered to comply with the law.

The additional problem in this situation is that it is a legal requirement to have a 1 hour fire rated separation between offices and warehouse. The construction of a 1 hour wall is not an issue, often it is the height that is the problem as you have to construct the wall to meet the plasterboard and metal stud work manufactures specifications.

The most expensive parts are the doors and windows, so the plan is always to keep these to a minimum.

Initial site Photographs.

Original upstairs rooms not meeting fire regulations

Another view of old offices

Another view of old offices

Another view of old offices

They stored things next to the offices

They stored things next to the offices

Underneath the mezzanine, hardboard used a potential fire hazard!

Toilets needed doing

None of the mezzanine floor steels protected.

Edge of mezzanine not protected.

As you can see from the above photographs, a general builder has built the offices ontop of a steel mezzanine floor with no fire protection using timber windows and non fire rated materials. The offices look ok but does not comply at all. The whole lot needed to be stripped out and started again. All of the mezzanine floor underneath needed a 1 hour fire rated suspended ceiling, along with column encasement protection (1 hour) and some re-organisation of the access routes with toilets, a small office and warehouse access with some basic security.

Construction Photographs

The other constraint that we had is the whole job had to be completed in 3 weeks as a new machine was due to arrive in the unit. The reason why the toilet block had to be halved, was that the new machine was 26 meters long and so it would not quite fit.

Staircase needed to be scaffolded

Main fire wall plastered ready for decoration

First fix electrics underneath mezzanine

Demolition of existing offices

Timber frame exposed to be removed

Timber frame exposed to be removed

Start of dry lining the walls

Boarding of the main fire wall between the offices and warehouse

Building the frame under the angles steels of the building

Suspended ceiling grid is quite quick to go in.

Construction of the new offices started

Outside walls plaster drying out

Ceiling tile just starting to go in.

Fire rated ceiling going in under mezzanine floor

Underneath of stairs

Windows dry lined around and window boards fitted

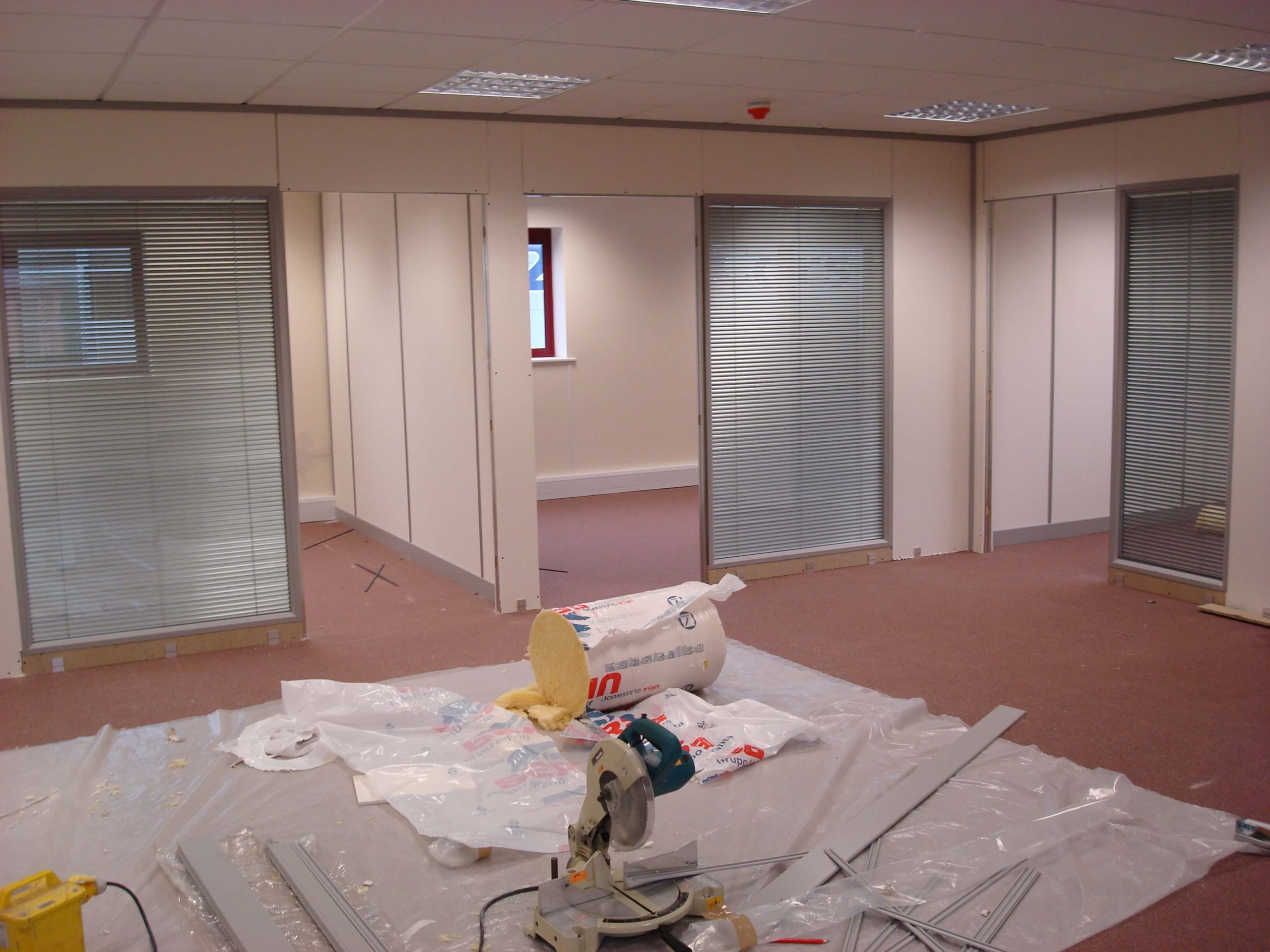

Offices starting to take shape

LED panels fitted

More office walls going in

Column encasement system fitted to steel uprights

Offices starting to take shape

Offices starting to take shape

Window boards fitted, insulation for ceiling arrived

Completed column encasement and ceiling tiles fitted.

More fire rated walls downstairs

Mezzanine floor edge protection

You can see the back of the light fitting has a 1 hour smoke hood fitted.

Downstairs work nearly finished

Offices nearly done

Offices nearly done

Offices virtually done

Final Result

We do not have any finished photographs as the customer needed to move in straight away. We kept to the dates that we advised the customer and we did have a couple of snag items to deal with which was not a problem once they were in. The project was inspected by Building Control and a passed certificate was issued to the client, as well as the Health and Safety file. The Health and Safety file included all of the as built drawings, certificates and evidence of emergency lighting and fire detection equipment that acts as a reference binder for the client to use in the future.

We chose demountable partition for the main office upstairs due to the speed of construction and the final finish looking much more modern and professional that a traditional stud and plasterboard wall.

Summary on Demountable Partitioning

  1. Using Demountable Partitioning is very tax efficient as they are seen as movable items and so can be treated differently in writing down allowances in the accounts.
  2. We can also lease Demountable Partitioning as they are movable, this spreads the costs of having the work done as Demountable Partitions always cost more than customers think.
  3. Leasing of demountable partitioning is very tax efficient and Cre8tive can provide illustrations, please contact us for further information.
  4. Most landlords insist on Demountable Partitions being used for offices as it is much easier to take them out should the tenant renting the space leave for any reason. The benefit is that is saves making a huge amount of mess and destruction that would be need with a conventional stud and plasterboard constructed wall.

Questions on Demountable Partitioning?

If you are not sure about anything as well as taking about all kinds of partitioning including Demountable we love to talk about projects and sort out problems and issues with space, please give us a call on 01380 738844

Categories
All Project Categories Office Refurbishments Partitioning Storage Walls

Office Fit Out in West Super Mare

Office fit out for John Hodge Solicitors in Weston Super Mare

Client: John Hodge Solicitors
Value: £45k

Office Fit out at Morston Court

John Hodge Solicitors required an office fit out in Weston Super Mare. They had previously occupied a prestigious location in Weston Super Mare and wanted to maintain the location but the property available next door was not big enough to accommodate all of the administration tasks that need to be carried out in a busy office.

The solution was to take on the building next door which was the old Choices video store and is covered in another new item. (click this link), and to take on a modern office which needed fitting out. This post relates to the fitting out of Morston Court.

Office Fit out work

The main building is rented, and so a requirement from landlords is that the partitioning needs to be demountable. The condition of the existing space was pretty good, with cabling and lighting already in place. We did have to re- cable all of the Cat5 data and voice sockets to the comms cabinet position, as well as re-position power sockets in the perimeter trunking so that there appeared in the correct places. All we had to do was to fit some partitioning as well as some storage wall for the main meeting room. We also had to build a small kitchen.

Office fit out for John Hodge Solicitors in Weston Super Mare
Design and drawing work first for both floors

Construction Photographs.

Completed Photographs.

Why Demountable Partitioning?

  1. Demountable partitioning is tax efficient in that they are seen as movable items and so can be treated differently in writing down allowances in the accounts.
  2. We can also lease Demountable Partitioning as they are movable, this spreads the costs of having the work done as Demountable Partitions always cost more than customers think.
  3. Leasing of demountable partitioning is very tax efficient and Cre8tive can provide illustrations, please contact us for further information.
  4. Most landlords insist on demountable partitions being used for offices as it is much easier to take them out should the tenant renting the space leave for any reason. The benefit is that is saves making a huge amount of mess and destruction that would be need with a conventional stud and plasterboard constructed wall.

Questions on Demountable Partitioning?

If you are not sure about anything we love to talk about projects and sort out problems and issues with space, please give us a call on 01380 738844

Categories
Air Conditioning All Project Categories Office Furniture Office Refurbishments

Office Refurbishment in Salisbury

Client: Chestergate Financial
Value: £40k

We were asked by this customer to look at the whole office space to address several things, and carry out a general office refurbishment. One of the main problems is that they needed to fit another couple of desk positions and space was limited. Other requirements were to completely re-decorate the offices, and to do something with the existing kitchen. Currently they just had a bit of worktop and had to fill a kettle with water from the toilet which was not ideal.

The carpet needed replacing in the main office and we cleaned the others. The windows were very drafty, and so we allowed to fit some secondary glazing inside the sash windows. Other issues was that the lighting was poor in the corridors and the spot lights were dazzling which made the office difficult to work in. People also tripped up and down the steps so we came up with some step lighting to solve this problem. We fitted a new kitchen and piped the supply and waste through the building to connect to the toilets.

The problem of desk space was solved by using some narrow bench style of desks grouped together in a cluster or bank. The computer screens were then fixed to the desk screens by using gas arms, freeing up desk space.

When we came to decorate the previous decorators had filled in the panels in the meeting room with silicon rather than decorators cork which meant the edges cracked. It all had to be hacked out and filled properly and then repainted.

Original Office Space Photographs

Design and Drawing Work

Drawing is one thing, working out then how it could be done with an occupied office was another. We worked closely with the customer to work out which rooms we could have access to, and how much time we needed for each section before we could move things around.

Construction Photographs

Office refurbishment

If you need any advice or are thinking of an office refurbishment project please give us a call, we would love to talk to you, on 01380 738844

Categories
All Project Categories Office Furniture Office Refurbishments Partitioning Projects Storage Walls

Office Design and fit out in Chippenham

Redlynch Leisure
Redlynch Leisure

Client: Redlynch Leisure
Value: £27k

Office Refurbishment in Chippenham

Redlynch Leisure wanted to have a new open plan space to have an office design and fit out carried out. The initial space was completely empty and required a complete design with fitting out work, consisting of Interior space planning and design, demountable partitions, storage wall, carpets, creation of canteen area, flooring, decoration and minor electrical work. We also supplied all of the office furniture which was in keeping with the design of the building.

Design and drawing work

We came up with a few different ideas, the customer in the end went for a more traditional layout.

The office design and fit out project also required us to submit plans to Building Control for approval which we obtained on behalf of the client. The major aspects of this office refurbishment project is in using materials which were complimentary to the design of the building. We chose Komfort Klassic timber demountable system which matched the finish of the barn styled windows. The storage wall was chosen to take the place of a partition wall and a cupboard, saving on cost, and fitting with the finishes of the partitions, outside of building and the furniture, which we also supplied and installed. We also had to alter the plumbing and move a radiator in order to install the partitioning. We provided a complete package and all the customer had to do was to move in.

We also put the customer in touch with an IT company and telephone systems company to handle the requirements which we work closely with in projects.

Storage Wall

We designed into this project a product called storage wall. Storage wall combines the function of a cupboard with a partition wall. So we build it up to the ceiling and as the width is around 400mm the thickness of the wall with the contents gives really good sound insulation. It is still demountable, so can be taken down and rebuilt.

Why Demountable Partitioning?

Another key element of this work was that the partitions had to be demountable. There are several reasons why this type of partition should be used in office projects:

  1. Demountable partitions are tax efficient in that they are seen as movable items and so can be treated differently in writing down allowances in the accounts, we can also lease elements of office refurbishments. Anything that can be moved.
  2. We mainly lease Demountable Partitions as they are movable, this spreads the costs of having the work done as Demountable Partitions always cost more than customers think.
  3. Leasing of movable items is very tax efficient and Cre8tive can provide illustrations, please contact us for further information.
  4. Most landlords insist on demountable partitions in an office as it is much easier to take them out should the tenant renting the space leave for any reason. The benefit is that is saves making a huge amount of mess and destruction that would be need with a conventional stud and plasterboard constructed wall.
Categories
Air Conditioning All Project Categories Design Office Furniture Office Refurbishments Partitioning Projects

Office Refurbishments in Bath

Office space planning in Bath for Regency Laundry
Finished tea pointFinished tea point

Client: Regency Laundry
Value: £28k

Cre8tive have carried out many office refurbishments over the years and all need to have some design and drawing work done initially and is the most important aspect of a project that needs to be  carried out in order to carry out a project properly. The existing office space had small narrow corridors, a dated partitions system and dark green colours making the space very dark.

We redesigned the office space and used beam system furniture to get computer cables off the floor. We also created a tea point in a cupboard and added some features in the carpet for some added interest in the design. All of the walls had to be redecorated. The refurbishment project consisted of Komfort Kameo 75mm demountable partition system, Gaskell carpet tiles, Armstrong suspended ceiling and Sebastien Indulgence furniture.

Included:

  • Design and drawing work
  • Stripping out of existing
  • Demountable Partitioning
  • Electrical work
  • Air conditioning
  • Flooring
  • Kitchen / tea point
  • Office Furniture

Drawing and Design Work

Working out what the customer wanted meant we had to drawer what they had and come up with several layouts to explore how the office would work for them.

Office Refurbishment Construction Images

Why Demountable Partitions in Office Refurbishments?

  1. Demountable partitions are tax efficient in that they are seen as movable items and so can be treated differently in writing down allowances in the accounts, we can also lease elements of office refurbishments. Anything that can be moved.
  2. We mainly lease Demountable Partitions as they are movable, this spreads the costs of having the work done as Demountable Partitions always cost more than customers think.
  3. Leasing of movable items is very tax efficient and Cre8tive can provide illustrations, please contact us for further information.
  4. Most landlords insist on demountable partitions in an office as it is much easier to take them out should the tenant renting the space leave for any reason. The benefit is that is saves making a huge amount of mess and destruction that would be need with a conventional stud and plasterboard constructed wall.

Not sure what to do?

  1. Please give us a call and we can help with any aspect of interior office fit out, along with space planning and design work.01380 73 88 44
Categories
All Project Categories Dilapidation work Mezzanine Floors Office Refurbishments

Factory Refurbishment

Image Factory fit out

Client: Image Factory
Value: £350k

Office and Factory Refurbishment project

This customer wanted a Factory Refurbishment having taken on the old Royal Mail building in Chippenham.

The first photograph below shows a £1m printing machine and Image Factory invested in two of them, along with taking over the old NHS distribution building on Bumpers Farm Industrial Estate. The complete building had to be refurbished, so the main factory along with the offices along the front of the building.

Factory Refurbishment

A large part of this project was electrical. The main factory had no power infra struture at all to power all of the print machines that the Image Factory owned as well as the new ones; so we had to install a heavy power buzz bar system into the factory and prepare the base and ground works for a new substation to be fitted.

In the main factory the floor had to be scrabbled to remove old oils in the concrete floor and then a high quality epoxy paint applied to the floor. All of the beams, walls and other surfaces also had to be painted.

Factory Refurbishment Photographs

Office Refurbishment

As well as the factory itself, the offices at the front of the building had to be completely stripped out and refurbished.

The mezzanine floor had to be turned around and a new jumbo stud fire wall constructed. Below the mezzanine floor we created a new reception area with fire rated ceiling, decorations and flooring. Upstairs included new ceilings, carpets, plastering and decorations as well as a new kitchen. Also fitted upstairs was a new office constructed from Komfort Kameo 75mm demountable partition.

If you need any advice or are thinking of an office refurbishment project please give us a call, we would love to talk to you, on 01380 738844

Categories
All Project Categories Office Furniture Office Refurbishments Suspended Ceilings Visuals

Office Fitting out in Trowbridge

Suspended Ceiling in Trowbridge

Client: Sea Terra Trowbridge
Value: £12.5k

Office Refurbishment

This project involved the office fitting out of an existing office space in order for the company to occupy. The existing office looked quite dated, but the position of the space and the structure suited the customer well. As the office was going to be busy with lots of noise on the phone a suspended ceiling was essential, as well as providing CAT 2 lighting which is needed when working on computers.

Space Planning and design work.

The space was quite small, there was also a requirement to fit a certain number of people inside the office and so a basic space plan was required.Moving on from a basic space plan we applied some colours to the layout as well so the customer had some idea what could be done by using different carpet colours. There is a difference between basic drawing work and space planning, please click on the link for more of an explanation.

Final photographs.

Luckily the office space was empty so it made fitting the suspended ceiling much easier. The original space was just an old shop with a plasterboard ceiling and old fissured (squiggle pattern) tiles which made the space look really dated. The lighting was surface mounted tubed light fittings which are not allowed under the Visual Display Regulations, so they had to be changed anyway to CAT2 at the very least as the customer was using computers.

The project included the installation of a new suspended ceiling, new CAT 2 lighting & electrics,  new flooring, decoration and furniture. The ceiling was slightly tricky as the existing space had arches located centrally within the space.

Suspended Ceiling

Suspended ceilings are almost always used when carrying out an office refurbishment as existing ones can look tired. We have a bit more information on suspended ceilings on the following link if you would like to have a look, please click this link. The choice of the suspended ceiling is almost always price versus performance. It is possible to have a plasterboard ceiling but the problem with this type is that it is very hard to get services over the ceiling with access problems, and the hard surface of the ceiling lets the sound bounce around. The mineral fibre tiles that are generally used offer good sound absorption properties, and can easily be taken out to get to any cabling that you may wish to run over the grid system.

We also install all our ceilings with a self leveling laser to so the ceiling is completely flat. Some builders try and put ceilings in and we do often have to put them right, it is important to get the supporting wires tensioned properly as well as centering the grid system properly so it looks evenly balanced in the space.

The furniture chosen was a beam system type of furniture which allows cables to be hidden in an integral beam that joins the leg frame uprights together.

Please give us a call on 01380 73 88 44 for more information about this project or any requirement you may have.

Categories
Air Conditioning All Project Categories Design Office Furniture Office Refurbishments Partitioning Suspended Ceilings

Office Refurbishment in Bristol

Office refurbishment in Bristol for Smurfit Kappa
Bespoke MD's desk

Client: Smurfit Kappa
Value: £65k

Office Design and Refurbishment in Bristol

Our client wanted a complete redesign refurbishment of the existing office space. The first task was to come up with some ideas and some colour schemes, the director wanted an adventurous new scheme, so we focused upon creating a more spacious effect through introducing new concepts of Lighting, Suspended Ceiling, Partitioning, new Air Conditioning systems, Flooring and Furniture in order to create a more relaxed office environment that mixes bold contemporary colour and natural materials.

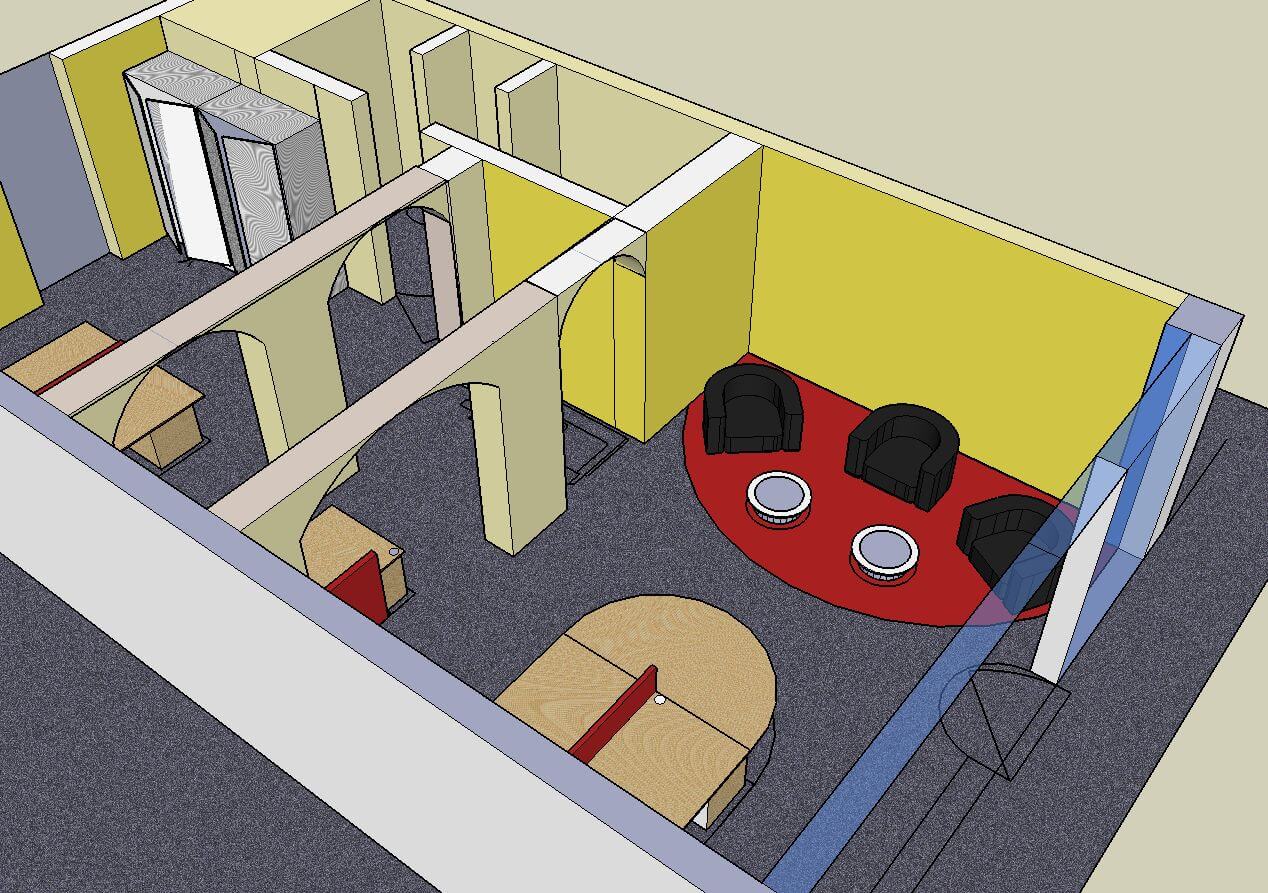

Design and Drawing work

In working out what needs to be done, we need to know what is there. A detailed drawing showing positions of electrics and the walls was produced. The new layout required a few designs, and in particular the Director wanted to have a meeting end on his new desk, so we had to design a desk and get it made particularly for him.

Colour scheme / Design

As this area was a completely separate area from the upstairs directors suite, we thought that the whole scheme could be different. The room was completely separate from the rest of the building, so when you walked in, there was a different feel which was modern, had a blend of the traditional timber partitions, along with some stripy carpet, and the middle solid carpet was a very high quality cut pile carpet which felt soft and luxurious underfoot. One of the main requirements was that the Managing Director wanted a meeting end on his desk and it was not possible to get one to fit from standard product ranges. We therefore had to get one made..

Existing space

As you can see from the photographs the whole area needed completely stripping out and replacing.

Stripping out and building photographs

I always like this phase as the office transforms, from a very dull space to something new. We do get an immense level of satisfaction in carrying out office refurbishment projects for this reason.

Final photographs

As you can see from the final photographs, Cre8tive were successful in carrying out a complete redesign and office refurbishment of the customers existing space.

Why Demountable Office Partitions?

  1. Demountable partitions are tax efficient in that they are seen as movable items and so can be treated differently in writing down allowances in the accounts, we can also lease elements of office refurbishments. Anything that can be moved.
  2. We mainly lease Demountable Partitions as they are movable, this spreads the costs of having the work done as Demountable Partitions always cost more than customers think.
  3. Leasing of movable items is very tax efficient and Cre8tive can provide illustrations, please contact us for further information.
  4. Most landlords insist on demountable partitions in an office as it is much easier to take them out should the tenant renting the space leave for any reason. The benefit is that is saves making a huge amount of mess and destruction that would be need with a conventional stud and plasterboard constructed wall.

.

Not sure what to do?

Please give us a call and we can help with any aspect of interior office fit out, along with space planning and design work.

01380 73 88 44

Categories
All Project Categories Office Refurbishments Partitioning

New Office Refurbishment

Office Fit out for Office Evolution

Client: Office Evolution
Value: £13k

Office Refurbishment

This customer purchased an industrial unit that was fitted in a way that was not really suitable for them as they needed to use it for offices. The whole space needed an office refurbishment with most things needing to be done. Creating a professional atmosphere was important as the customer wanted to use the office as a showroom as well.

They also wanted a double door to the garage area so that this could act as a store and a suspended ceiling throughout, and to make the space light and airy we used Cat2 lighting throughout.The project included a small bit of stripping out, new kitchen, redecoration, electrical power and data, new demountable partitions, new suspended ceiling and lighting and a new carpet.

Office Refurbishment Construction Photographs

Why Demountable Partitions in an Office Refurbishment?

  1. Demountable partitions are tax efficient in that they are seen as movable items and so can be treated differently in writing down allowances in the accounts, we can also lease elements of office refurbishments. Anything that can be moved we can lease.
  2. We mainly lease Demountable Partitions as they are movable, this spreads the costs of having the work done as Demountable Partitions always cost more than customers think.
  3. Leasing of movable items is very tax efficient and Cre8tive can provide illustrations, please contact us for further information.
  4. Most landlords insist on demountable partitions in an office as it is much easier to take them out should the tenant renting the space leave for any reason. The benefit is that is saves making a huge amount of mess and destruction that would be need with a conventional stud and plasterboard constructed wall.

Not sure about what to do?

If you need help with anything and are not sure what to do, please give us a call for a chat and a visit. We are happy to carry out as much or as little as you require and can come up with solutions to any problems or queries you have about an office refurbishment project.
Please call 01380 73 88 44

Want to find out more about our customer?

Please click this link to go to their website..
